Function Description

\n

The RS232 to USB cable is primarily used to connect devices with an RS232 interface to those with a USB interface (for example, a 48V(51.2V) 100AH Lithium Iron Phosphate (LiFePO4) battery) to enable communication and data transfer. It can convert signal levels and communication protocols, allowing these two different types of interfaces to be compatible. For example, it can be used to connect a computer to a 48V(51.2V) 100AH Lithium Iron Phosphate (LiFePO4) battery for communication and reading battery data.

\n\n

RS232 to USB Specification

\n
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
RS232 to USB
ChipFTDI-FT232R
Cable SpecUL20251 28AWG (7/0.12BC) 6C, PVC jacket, black
Outer Diameter2.5mm × 7.0mm ± 0.2mm
Length2000mm ± 10mm
USB ConnectorFTDI-FT232R + SP213 PCB, USB A male connector, white
RS232 ConnectorRJ12 6P6C male
\n
\n\n

RS232 Pin Description

\n
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
PortRS232USB
Pin Description1, 2, 6 = NC1 = VCC
4 = TXD2 = D+
3 = RXD3 = D-
5 = GND4 = GND
\n
\n

The RS485 to USB communication cable is a device for interface conversion. It can convert data from the RS485 protocol to the USB protocol, and vice versa. In this way, a computer can communicate with devices that support the RS485 protocol, such as a 51.2V 100AH Lithium Iron Phosphate (LiFePO4) battery 3U, via the USB interface. This allows for operations like connecting to a host computer or SolarAssistant, reading battery data, and updating battery firmware.

\n\n

RS485 to USB Specification

\n
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
RS485 to USB
ChipFTDI-FT232R
Cable Spec28AWG (7/0.12BC) 8C, PVC jacket, black
Outer Diameter2.5mm × 8.5mm ± 0.2mm
Length2000mm ± 10mm
USB ConnectorFTDI-FT232R + SP485 PCB, USB A male connector, white
RS485 ConnectorRJ45 8P8C male
\n
\n\n

RS485 Pin Description

\n
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
PortRS485USB
Pin Description2, 7 = A+1 = VCC
1, 8 = B-2 = D+
4, 5 = NC3 = D-
3, 6 = GND4 = GND
\n
\n\n

Information on Security Testing

\n\n
","image":["/images/ecoworthybase.shop/images/product/eco-worthy-rs232-rs485-to-usb-adapt-cable-for-server-rack-battery-pc-communication-6-6-feet-1.jpg","/images/ecoworthybase.shop/images/product/eco-worthy-rs232-rs485-to-usb-adapt-cable-for-server-rack-battery-pc-communication-6-6-feet-2.jpg","/images/ecoworthybase.shop/images/product/eco-worthy-rs232-rs485-to-usb-adapt-cable-for-server-rack-battery-pc-communication-6-6-feet-3.jpg","/images/ecoworthybase.shop/images/product/eco-worthy-rs232-rs485-to-usb-adapt-cable-for-server-rack-battery-pc-communication-6-6-feet-4.jpg"],"sku":"eco-worthy-rs232-rs485-to-usb-adapt-cable-for-server-rack-battery-pc-communication-6-6-feet","brand":{"@type":"Brand","name":"Eco-Worthy"},"offers":{"@type":"AggregateOffer","lowPrice":11.47,"highPrice":11.47,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://ecoworthybase.shop/products/eco-worthy-rs232-rs485-to-usb-adapt-cable-for-server-rack-battery-pc-communication-6-6-feet","offerCount":2}}
Eco-Worthy RS232/RS485 to USB Adapt Cable for Server Rack Battery & PC Communication (6.6 feet)
HomeStore

Eco-Worthy RS232/RS485 to USB Adapt Cable for Server Rack Battery & PC Communication (6.6 feet)

Eco-Worthy RS232/RS485 to USB Adapt Cable for Server Rack Battery & PC Communication (6.6 feet)

Select Battery Communication Cable
From $11.47

Original: $32.76

-65%
Eco-Worthy RS232/RS485 to USB Adapt Cable for Server Rack Battery & PC Communication (6.6 feet)—

$32.76

$11.47

The Story

Function Description

The RS232 to USB cable is primarily used to connect devices with an RS232 interface to those with a USB interface (for example, a 48V(51.2V) 100AH Lithium Iron Phosphate (LiFePO4) battery) to enable communication and data transfer. It can convert signal levels and communication protocols, allowing these two different types of interfaces to be compatible. For example, it can be used to connect a computer to a 48V(51.2V) 100AH Lithium Iron Phosphate (LiFePO4) battery for communication and reading battery data.

RS232 to USB Specification

RS232 to USB
Chip FTDI-FT232R
Cable Spec UL20251 28AWG (7/0.12BC) 6C, PVC jacket, black
Outer Diameter 2.5mm × 7.0mm ± 0.2mm
Length 2000mm ± 10mm
USB Connector FTDI-FT232R + SP213 PCB, USB A male connector, white
RS232 Connector RJ12 6P6C male

RS232 Pin Description

Port RS232 USB
Pin Description 1, 2, 6 = NC 1 = VCC
4 = TXD 2 = D+
3 = RXD 3 = D-
5 = GND 4 = GND

The RS485 to USB communication cable is a device for interface conversion. It can convert data from the RS485 protocol to the USB protocol, and vice versa. In this way, a computer can communicate with devices that support the RS485 protocol, such as a 51.2V 100AH Lithium Iron Phosphate (LiFePO4) battery 3U, via the USB interface. This allows for operations like connecting to a host computer or SolarAssistant, reading battery data, and updating battery firmware.

RS485 to USB Specification

RS485 to USB
Chip FTDI-FT232R
Cable Spec 28AWG (7/0.12BC) 8C, PVC jacket, black
Outer Diameter 2.5mm × 8.5mm ± 0.2mm
Length 2000mm ± 10mm
USB Connector FTDI-FT232R + SP485 PCB, USB A male connector, white
RS485 Connector RJ45 8P8C male

RS485 Pin Description

Port RS485 USB
Pin Description 2, 7 = A+ 1 = VCC
1, 8 = B- 2 = D+
4, 5 = NC 3 = D-
3, 6 = GND 4 = GND

Information on Security Testing

  • 100% Electrical Test: open, short & miswire test
  • Conductor Resistance: 20Ω, Insulator Resistance: 10MΩ
  • High Voltage: DC 300V 0.01sec
  • Must be RoHS compliant
Eco-Worthy RS232/RS485 to USB Adapt Cable for Server Rack Battery & PC Communication (6.6 feet) - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

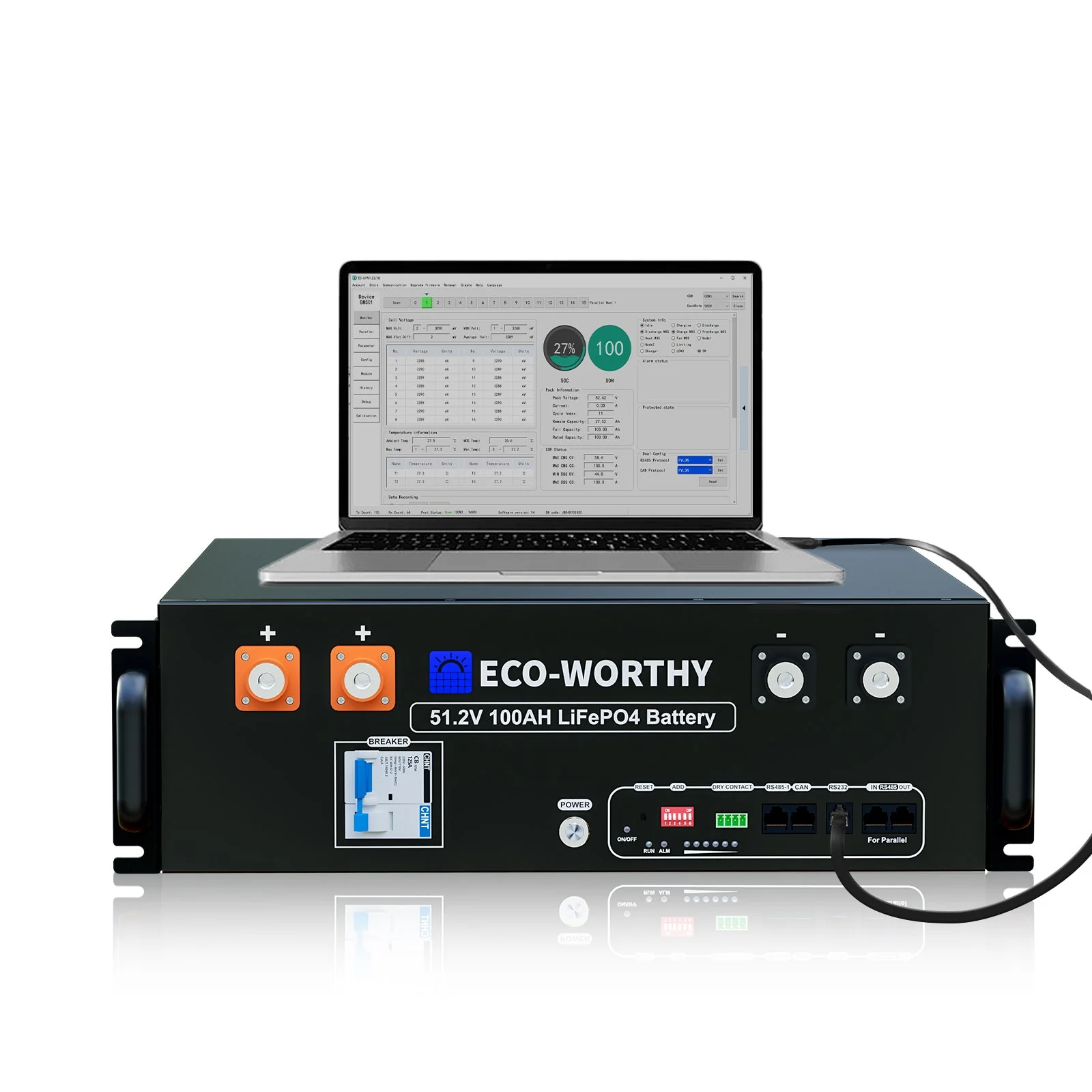

Eco-Worthy RS232/RS485 to USB Adapt Cable for Server Rack Battery & PC Communication (6.6 feet) - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

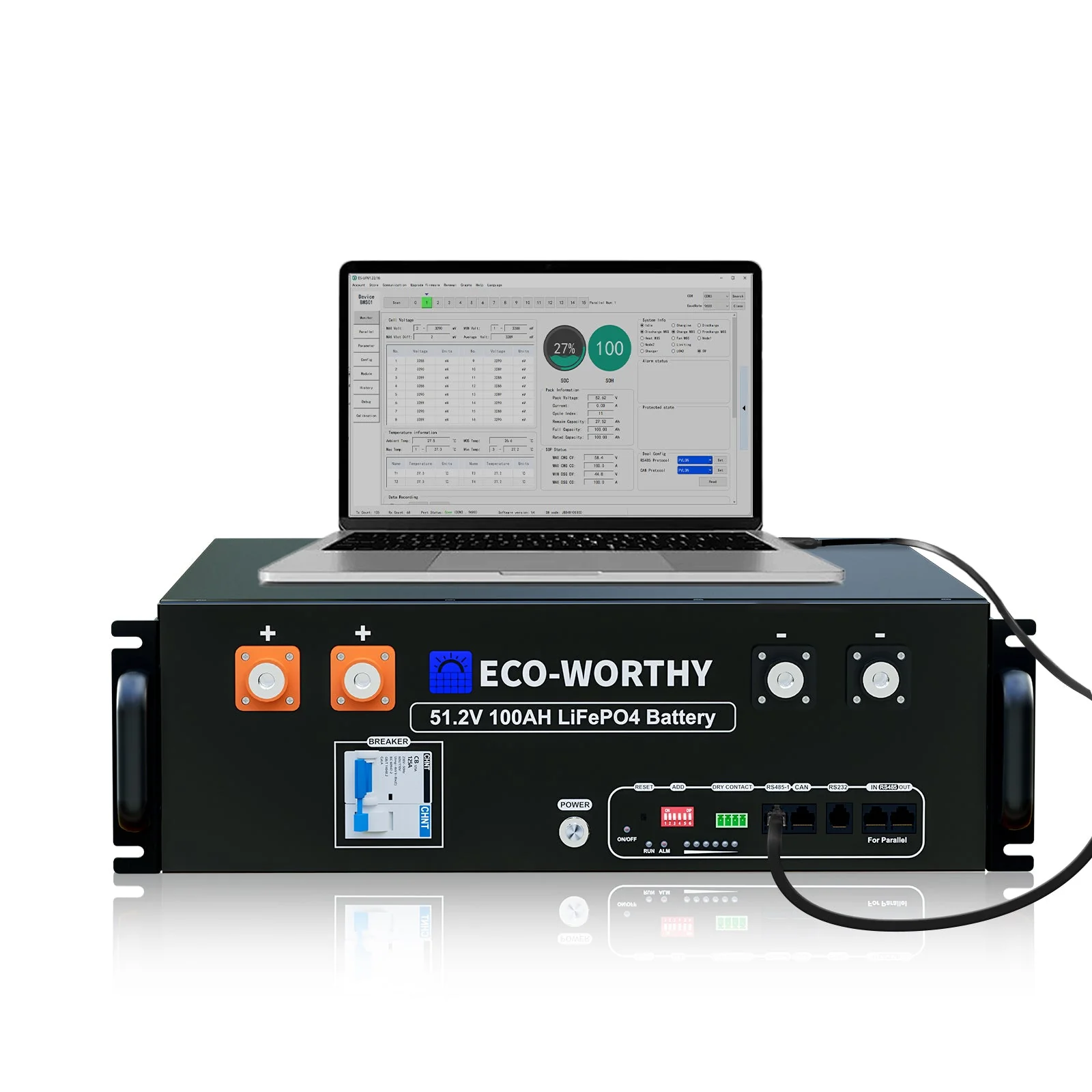

Eco-Worthy RS232/RS485 to USB Adapt Cable for Server Rack Battery & PC Communication (6.6 feet) - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Function Description

The RS232 to USB cable is primarily used to connect devices with an RS232 interface to those with a USB interface (for example, a 48V(51.2V) 100AH Lithium Iron Phosphate (LiFePO4) battery) to enable communication and data transfer. It can convert signal levels and communication protocols, allowing these two different types of interfaces to be compatible. For example, it can be used to connect a computer to a 48V(51.2V) 100AH Lithium Iron Phosphate (LiFePO4) battery for communication and reading battery data.

RS232 to USB Specification

RS232 to USB
Chip FTDI-FT232R
Cable Spec UL20251 28AWG (7/0.12BC) 6C, PVC jacket, black
Outer Diameter 2.5mm × 7.0mm ± 0.2mm
Length 2000mm ± 10mm
USB Connector FTDI-FT232R + SP213 PCB, USB A male connector, white
RS232 Connector RJ12 6P6C male

RS232 Pin Description

Port RS232 USB
Pin Description 1, 2, 6 = NC 1 = VCC
4 = TXD 2 = D+
3 = RXD 3 = D-
5 = GND 4 = GND

The RS485 to USB communication cable is a device for interface conversion. It can convert data from the RS485 protocol to the USB protocol, and vice versa. In this way, a computer can communicate with devices that support the RS485 protocol, such as a 51.2V 100AH Lithium Iron Phosphate (LiFePO4) battery 3U, via the USB interface. This allows for operations like connecting to a host computer or SolarAssistant, reading battery data, and updating battery firmware.

RS485 to USB Specification

RS485 to USB
Chip FTDI-FT232R
Cable Spec 28AWG (7/0.12BC) 8C, PVC jacket, black
Outer Diameter 2.5mm × 8.5mm ± 0.2mm
Length 2000mm ± 10mm
USB Connector FTDI-FT232R + SP485 PCB, USB A male connector, white
RS485 Connector RJ45 8P8C male

RS485 Pin Description

Port RS485 USB
Pin Description 2, 7 = A+ 1 = VCC
1, 8 = B- 2 = D+
4, 5 = NC 3 = D-
3, 6 = GND 4 = GND

Information on Security Testing

  • 100% Electrical Test: open, short & miswire test
  • Conductor Resistance: 20Ω, Insulator Resistance: 10MΩ
  • High Voltage: DC 300V 0.01sec
  • Must be RoHS compliant
